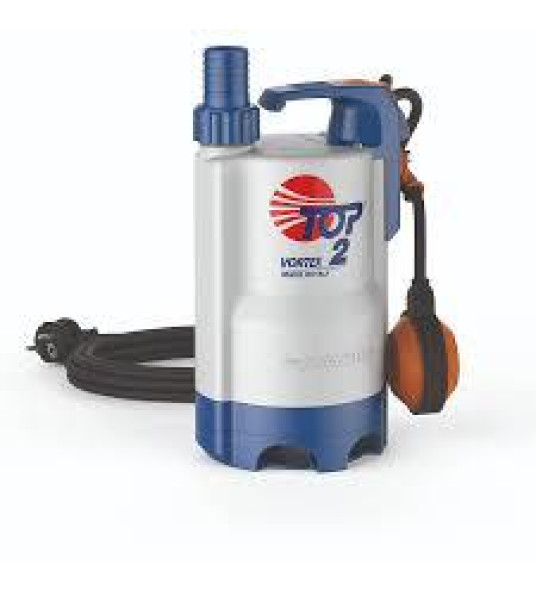

Pedrollo Top 2 Vortex impeller submersible pump (with float switch) is suitable for use with dirty water containing solids up to 20mm diameter.

Design innovations such as the complete cooling of the motor and shaft with double seal make these pumps easy to use and reliable.

They are suitable for use in applications such as the pumping of septic tank and sewage treatment plant effluent pumping dirty water emptying tanks discharging domestic waste water and for emptying collection traps containing suspended solids up to a maximum of 20mm particle diameter.

Application Limits:

• Maximum operating depth below water level up to 3 m

(with an appropriately sized power cable)

• Liquid temperature up to +40 °C and up to +90 °C for

short bursts (up to 3 minutes max) for intermittent service

• Capable of processing suspended solids up to Ø 25 mm

• Draining capability up to 25 mm from the bottom
