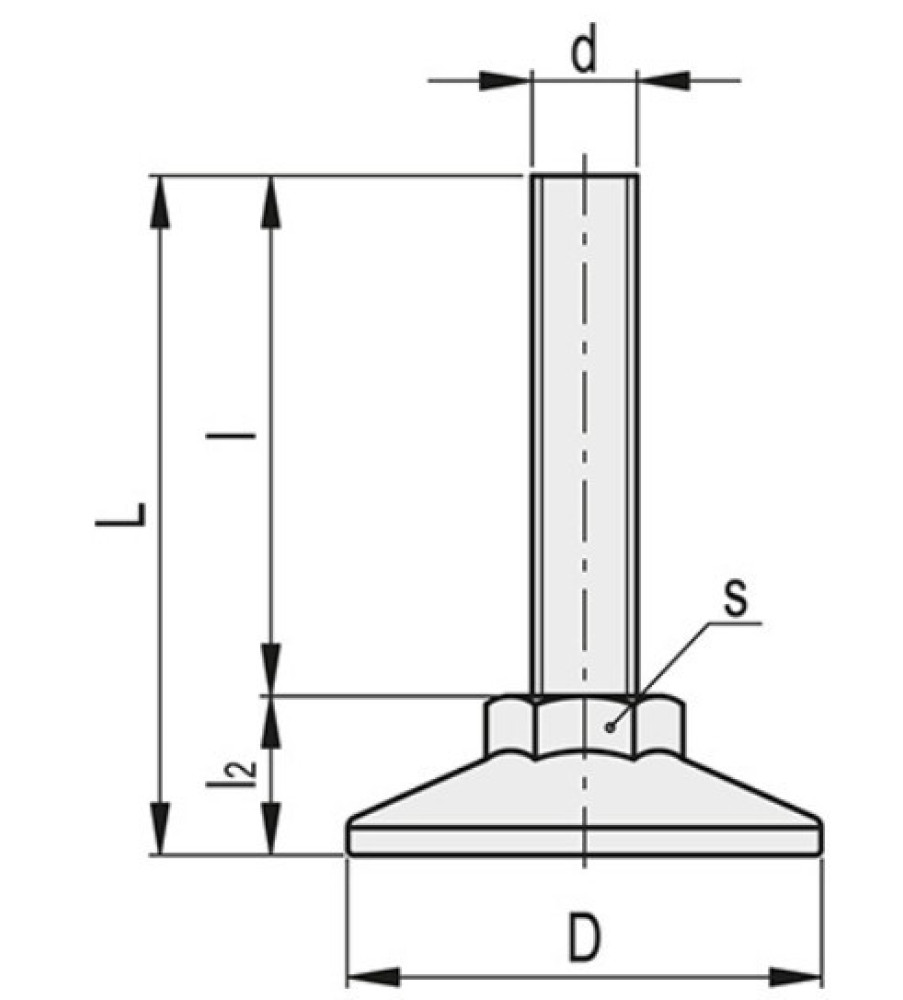

D          30

d          M8

L          43

l           31

l2         12

s           17

Max. limit static load* [N]     2500

Weight (in g)  18

* The max static load is the value above which the load applied to the element may cause some plastic material breakage in particular conditions of use. Obviously a factor that takes into consideration the importance and the safety level of the specific application must be applied to this value.
