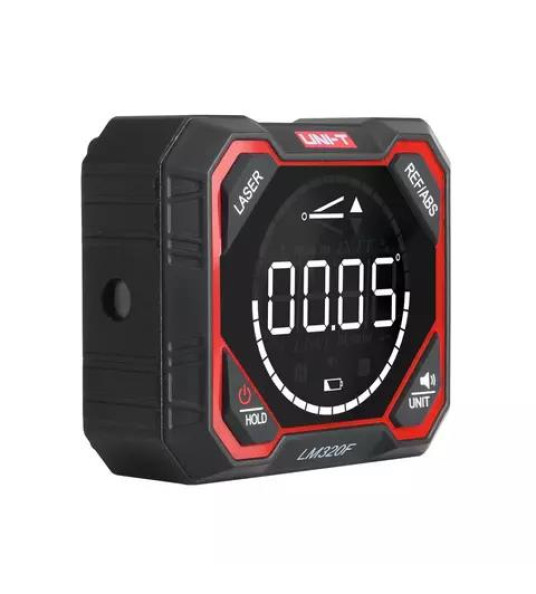

The new LM320 series is a lightweight and portable angle meter with a durable aluminum alloy frame. It features a high-definition color display with automatic screen rotation supporting a full 4×90° measurement range. The device provides real-time tilt angle data and is equipped with a magnetic base for easy and stable positioning. It is widely used in engineering construction and mechanical installation fields.

Specifications

• Measurement Range                     4*90°
• Resolution                          ±0.05°
• Angle Accuracy                  ±0.2°
• Repeatability                     ±0.2°
• Unit       °; %; mm/m; in/ft.
• Laser Lines                                          3 lines
• Laser Accuracy                  ±3mm/5m
• Magnetic Base   Four-sided magnetic  (Bottom rear left and right)
• Relative/Absolute Angle Measurement  v
• Angle Hold          v
• Screen Rotation v
• Auto Power Off v
• Materials             Al-alloy frame +ABS
• Power Supply    1000mAh lithium battery
• Working Temperature   0?~ + 50?
• Laser Class                          Class 2
• Laser Type                          630-670nm <1mW
• Battery Life                         6h
• Power Supply    1000mAh lithium battery
• Product Size       83.5*70*35.5mm
• Product Net Weight        About 180g
• Standrad Accessories     Angle Meter*1 Type-C Cable*1 Gift Box*1 User Manual*1
