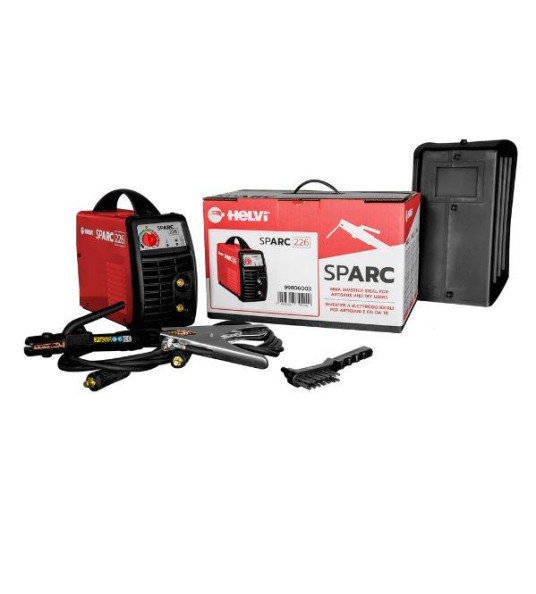

Easy-to-use welding inverter: optimum welding performance with all types of commercial electrodes (rutile basic stainless steel). They fit overvoltage over temperature and anti-sticking control. As they are compact and lightweight they are ideal for home/hobby applications.

TECHNICAL DATA
Input voltage (1ph) 230V – 50/60Hz
A 60% 23 A
Power 60% 32 KW
No load output voltage 70 V
Amp. Min-Max (H.S.) 10 ÷ 200 A
Duty Cycle 40° 200A @ 25%
130A @ 60%
100A @ 100%
 E 16 ÷ 40 mm
Electrode type 6013 – 7018
Insulation H
Protec. degree IP22S
Machine (LxWxH) 285x120x255 mm
Carton Box (LxWxH) 380x245x240 mm
Weight box/net 70 / 76 Kg
