Professional welding machine for intensive use for professional use. Very high work cycle 200a to 60%

It is equipped with Hot Start systems to facilitate the trigger of the arc anti-sticking to prevent the electrode from paste to the piece and ARC Force that increases the strength of the arc to avoid switching off especially in particular welding positions.

For the welding of rutile basic stainless cast-iron electrodes. Diameter from 1.6 mm to 5.0 mm

Equipped with over tensing and overtemperature control. It can be used with a generator and long link lines.

It can weld to TIG DC in direct current on iron and stainless steel (not aluminium) with gaseous protection argon and trigger lift.

Kit includes:

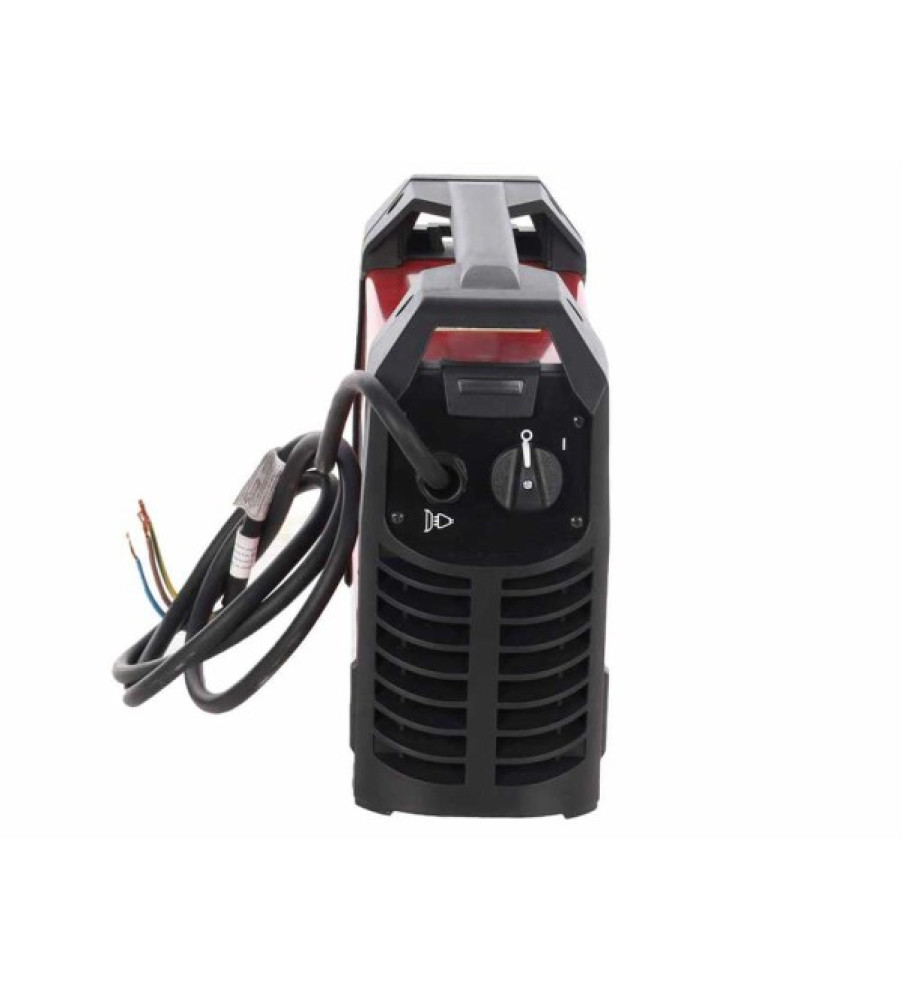

Helvi Galileo 219 welding machine

Mass cable with 300 amp caliper - 2mt 50 mm2 connector

Electrode welding torch with 3MT cable - 50 mm2 connector

Welding machine bag

Power supply voltage (1PH)         230V - 50 / 60Hz

Power consumption to 60%         6 kW

Vacuum voltage (V)         48 V

Amp. Min-max  10 ÷ 200 a

Duty Cycle 40 °  200a to 60%

155A 100%

Ø electrode        1.6 ÷ 5 mm

Usable electrodes            6013 - 7018

Degree of protection      IP23S

Size welding machine     360x140x255 mm

Weight 6.7 kg
